Process Metrix Process Particle Counter
|
| |
| Particle Size and Concentration Measurements for Real-Time Process Applications: |

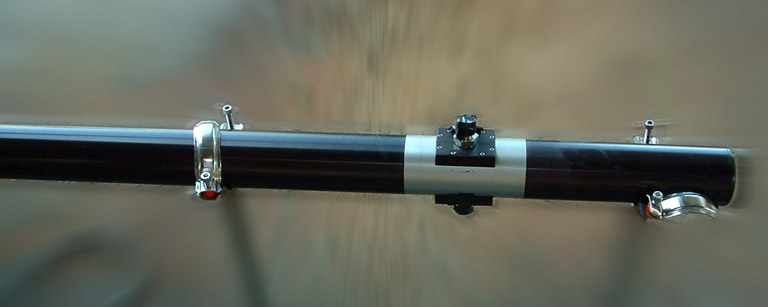

| The Process Metrix PPC (Process Particle Counter) is designed to provide in-situ measurements of airborne particles for low concentration (< 5 gm/m3) industrial gas/particle flow systems. This sensor is capable of providing particle concentration, size distribution, and velocity information in hostile environments. PPC can (when enclosed in a water-jacketed probe) measure in gas temperatures up to 1400C or high pressures (up to 100 ATM) in extractive mode. Measurements at combined high temperature and pressure (400C and 20 Atm) have also been achieved. |
|
| |
| Industries: |
- Petroleum refineries
- Gas Turbines
- Gas Distribution Systems
- Cement, Steel
- Foundry
- Aluminum
- Boilers
- Powder Production/collection
- Pulp and Paper
- Powder milling and Processing
- Laboratory and Field Research
- Filter Testing, and more
|
| |
| Technical Specifications: |
| Available in fixed or semi-portable installations, the PPC is an optimal answer to the need for in-process particle characterization of dilute process streams in hostile environments. The PPC has been proven in such applications as: |
- Fossil Energy Combustors
- Hazardous Waste Processing
- Incineration Facilities
- Powder & Materials Process Streams
- Filtration Efficiency Measurements
|
| |
| Size Range |
- General capability from 0.2 to 200 microns
- Typical configuration is 0.4 to 80 microns
|
| |
| Concentration |
- Submicron: up to 107/cm3 (typical up to 106/cm3)
- Supermicron: to 10 PPM by volume
|
| |
| Flow Velocity |
- 0.1 to 400 m/sec
- up to 500,000 measurements/second
|
| |
| Accuracy / Precision |
- Accuracy: ˇŔ5% of indicated size
- Precision: ˇŔ3% of indicated size
- Verification via ASTM reference standard reticle
|
| |
| Remote Operation |
- Control PC to signal processor/optical probe: 1,000 meters through Ethernet connection
- Explosion proof / waterproof enclosures available
|
| |
